Infiniti diagnostics


Infiniti Diagnostics CAN Menu


The Self Diagnostics menu displays a system component map:

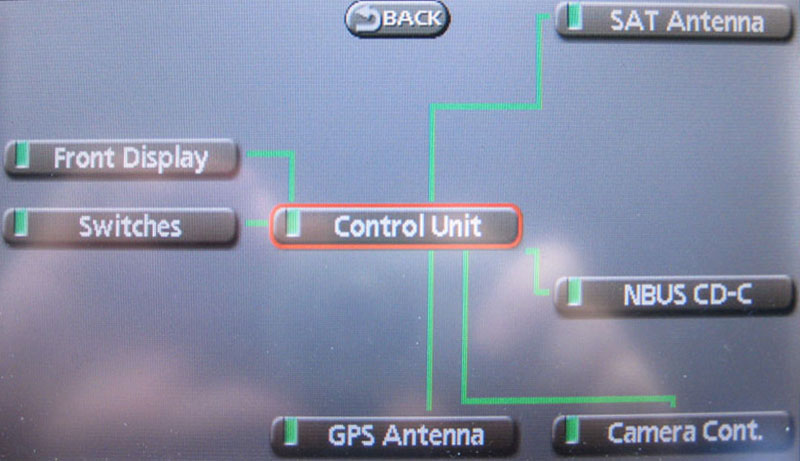

Navigation Model:

Infiniti Self Diagnostics

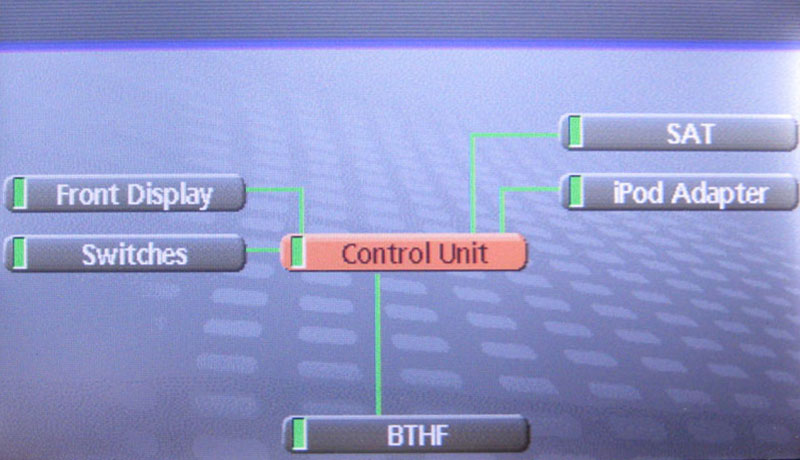

Non-Navigation Model:

Infiniti navigation Diagnostics

Unit Status:
-- Green = Normal
-- Gray = Connection Malfunction
-- Red = Unit Malfunction


Connection Line:
-- Green = Normal
-- Yellow = Connection Malfunction


You can utilize the touch screen (if equipped) or the system controller to select an option to display additional information if there is a listed system component error

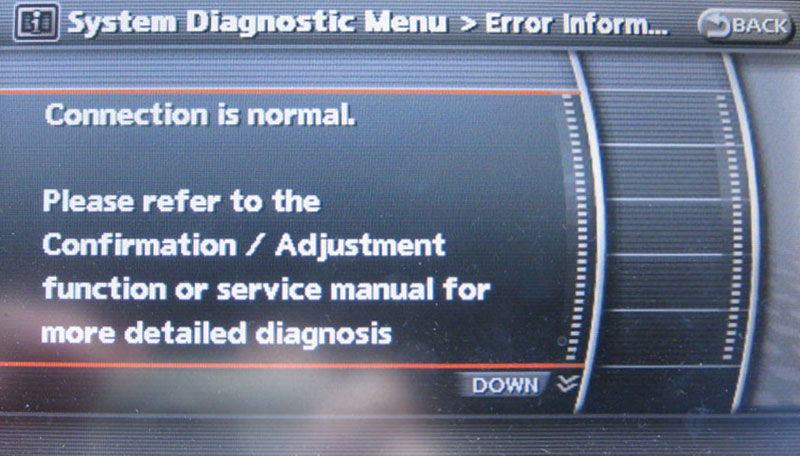

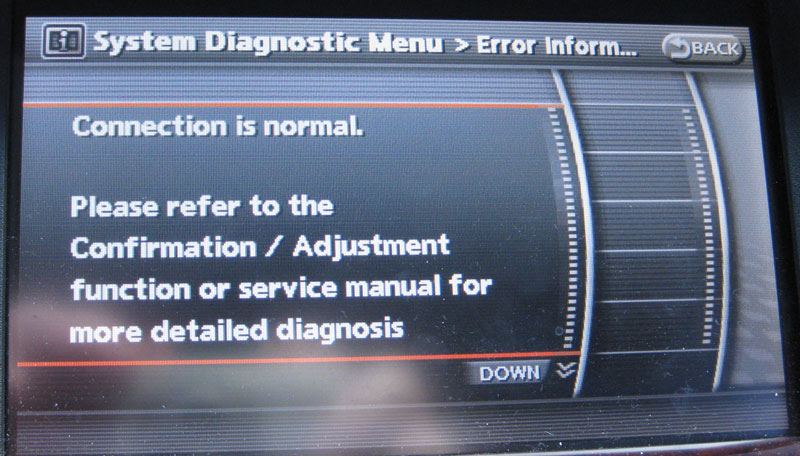

Diagnostics error information

RETURN TO PREVIOUS
