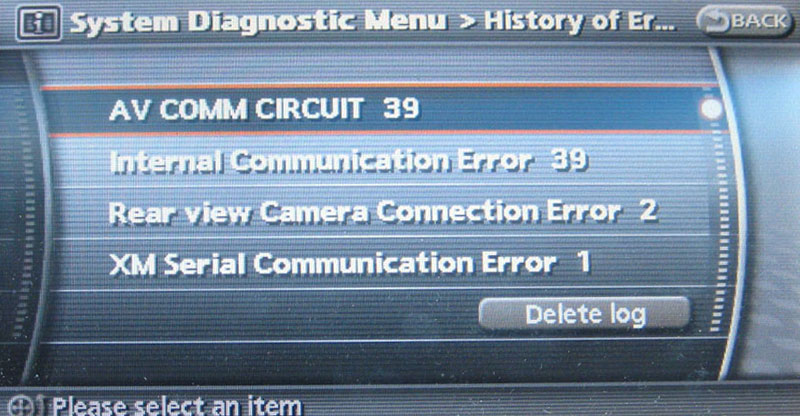

 Erro Histor Selection The Error History section lists all system errors which are stored in memory. Each error can be selected for additional information:
The self-diagnosis results are judged depending on whether any error occurs from when “Self-diagnosis” is selected until the self-diagnosis results are displayed. However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the “Error Record” to detect any error that may have occurred before the self-diagnosis start because of this situation. The error record displays the time and place of the most recent occurrence of that error. However, take note of the following points: ---- If there is a malfunction with the GPS antenna circuit board in the AV control unit, the correct date and timeof occurrence may not be able to be displayed. ---- Place of the error occurrence is represented by the position of the current location mark at the time an erroroccurred. If current location mark has deviated from the correct position, then the place of the error occurrencecannot be located correctly. ---- The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending on the error item. Count up method A ---- The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle. ---- The counter upper limit is 39. Any counts exceeding 39 are ignored.“ The counter can be reset (no error record display) with the “Delete log” switch or CONSULT-III. Count up method B ---- The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle. ---- The counter upper limit is 50. Any counts exceeding 50 are ignored. “ The counter can be reset (no error record display) with the “Delete log” switch or CONSULT-III.
|

|
