Infiniti Diagnostics Reverse Camera Menu


The Camera Control Menu is utilized to adjust the functionality of the rear camera

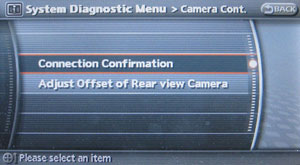

Infiniti Display Camera Adjustment Menu

Camera Cont. Menu Options:


  • Connection Confirmation
  • Adjust Offset of Rear View Camera


  • Connection Confirmation:
    • Steer. Angle Sensor:
    ---- ON: Ignition is on and steering is being used.
    ---- OFF: Ignition in ACC or not steering with ingition switch on
    • Reverse Sensor: ON means vehicle is in reverse, OFF is when selector is in another position
    • Vehicle Speed Sensor:
    ---- ON: Vehicle is traveling > 0 MPH
    • Side View Switch: Not used

    For each section, a "-" signifies a Malfunction detected

    Adjust Offset of Rear View Camera: This mode allows for adjustment of the "guide lines" used when the vehicle is in reverse, primarily to realign after removal or replacement.
